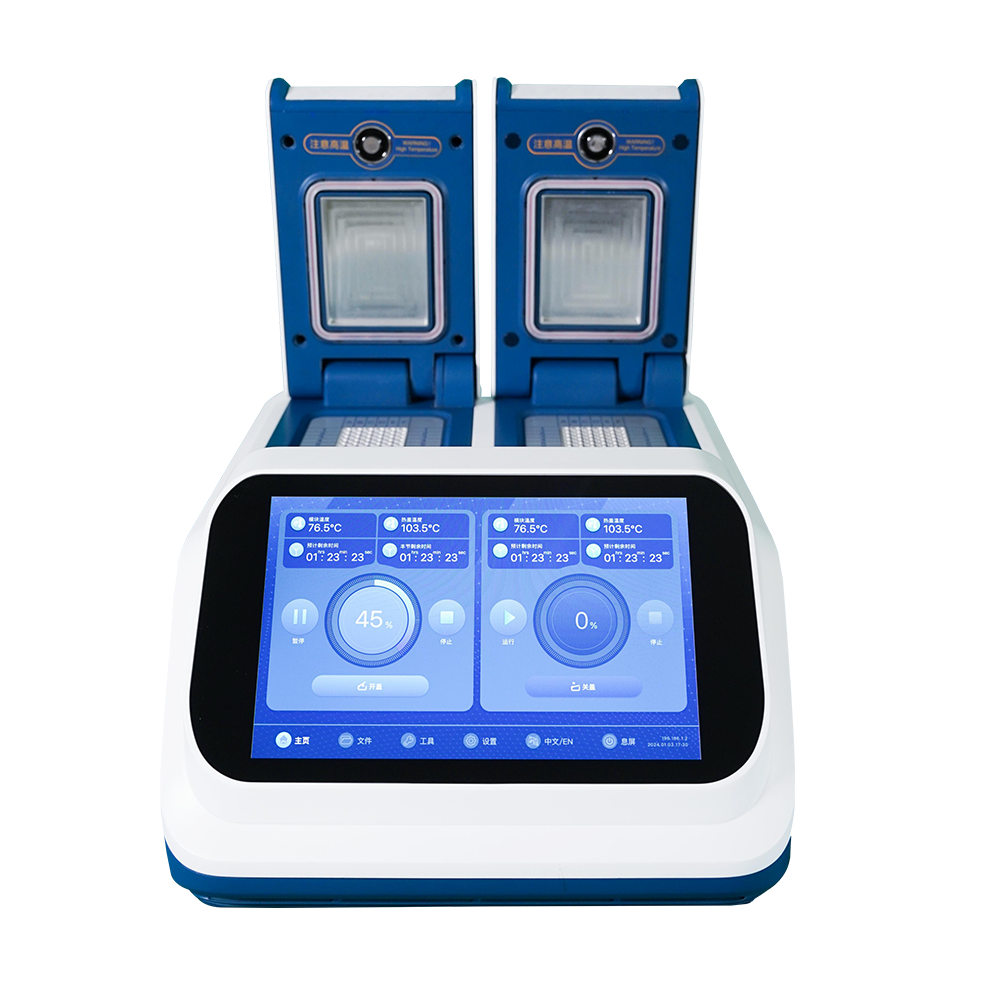

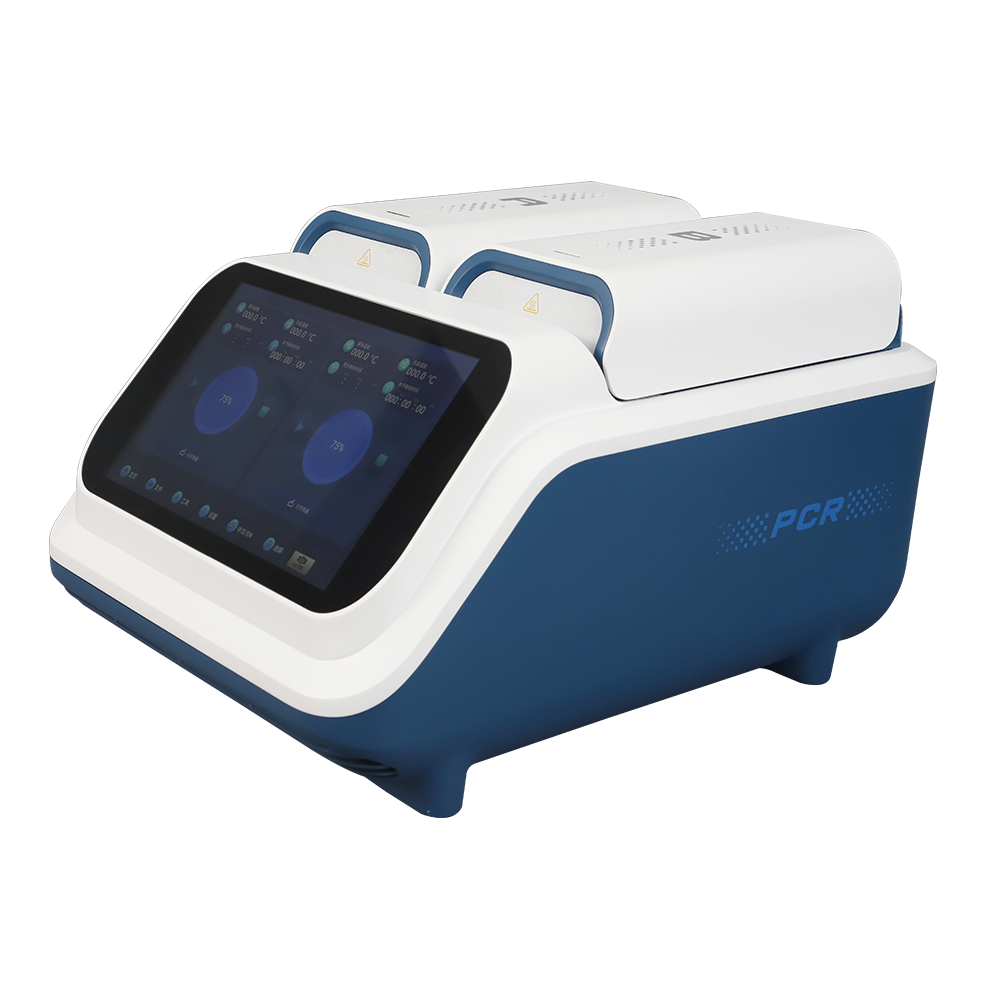

C480 Thermal Cycler

C480 is a new generation PCR instrument launched by Hangzhou Lattice. This PCR instrument is equipped with three modules that can independently execute corresponding temperature programs, allowing experiments that originally needed to be completed on three instruments to be completed on the same instrument, thereby saving you experimental costs and time.

On the basis of inheriting the excellent performance of the original brand PCR instrument, C480 adopts the Android system and has made significant optimizations in temperature control program settings, program file management, graphical interface, etc., bringing users a more comfortable operating experience.

0571-89905515

Message

Product Features

Android system, equipped with 12.1" color edge-to-edge touch screen. Beautiful interface and smooth operation

Intelligent heat lid with finger-pinch protection, open or close the lid automatically with one click

Electromagnet attraction solution, say goodbye to traditional mechanical locks

Replace the sample holders easily and quickly without tools, convenient maintenance

Set variable temperature rates for each section, to meet demanding experimental requirements

8G internal storage, equipped USB interface for storage extension and data import or export

Run 2 PCR tests independently, each sample holder is an independent device

Up to 8℃/s heating rate, compresses experimental time and reduces non-specific amplifications

Technical Parameter

Model	C480
Sample holder specifications	0.2ml482 / 0.1ml482
Temperature control range	0~100℃
Screen	12.1" full touch screen
Electric intelligent heat lid (Electric opening and closing heat lid)	support
Anti-pinch hand function	support
Heat lid pressure detection	support
Voice wake switch hot cover	Support
Temperature control method	Imported high-performance thermoelectric refrigeration
Maximum heating rate	≥8.0℃/s
Maximum cooling rate	≥5.0℃/s
Average heating rate	≥5.0℃/s (55℃-95℃)
Average cooling rate	≥3.0℃/s (55℃-95℃)
Temperature uniformity	±0.15℃ (95℃ constant for 10s)
Temperature accuracy	±0.1℃
Temperature increasing/decreasing	support
Time increasing/decreasing	support
Temperature rate adjustable range	0.1~8℃/s
Gradient temperature width	0~30.0℃
Sample holder replacement	support
Independent operation of sample holder	support
Modify experimental parameters during operation	support
Power failure recovery	support
1-click to start common programs	support
Nested loops	support
Communication interface	USB
Operating system	Android
Dimension (LWH mm)	510 * 386 * 304
