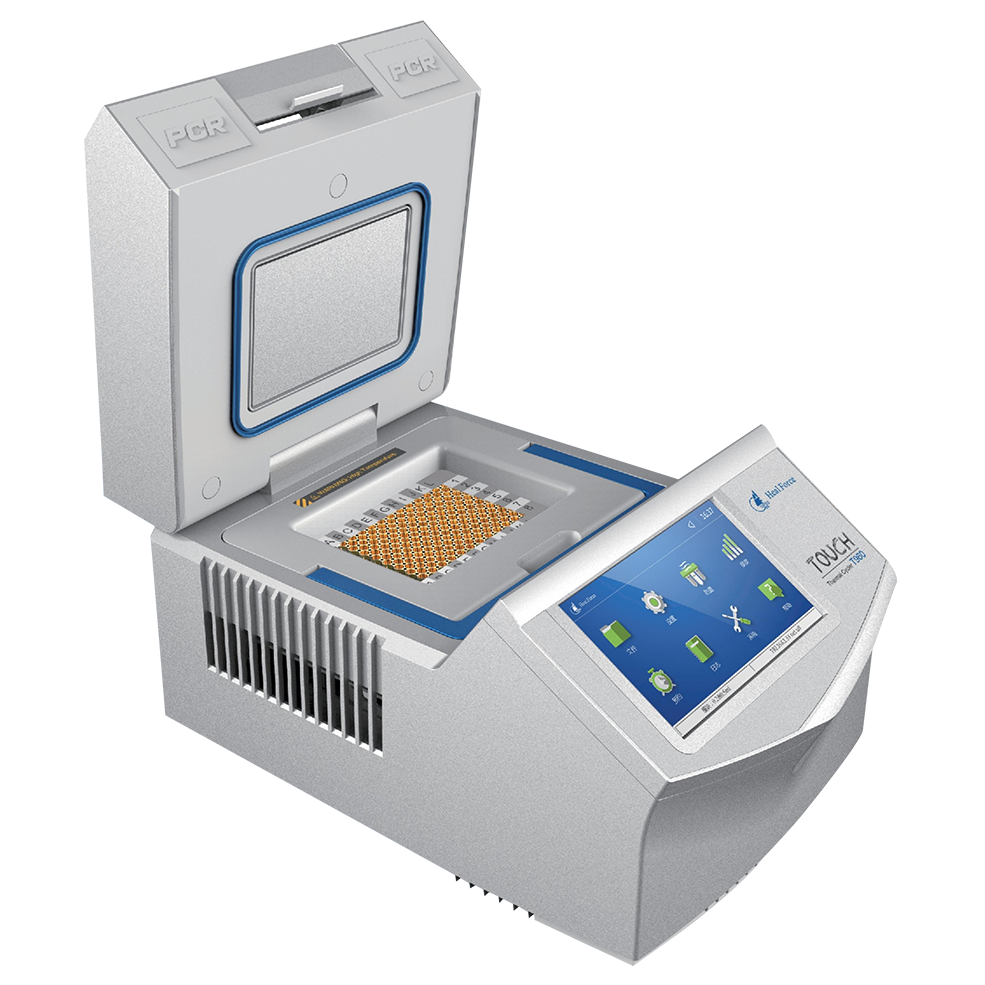

T960 Thermal Cycler

The 960 gene amplification instrument is a dignified and novel PCR instrument with an infinitely adjustable heat cap design, which can control multiple devices simultaneously on a PC. Internally using Android system, easy to operate; Handle style sample holder design, universal for multiple specifications of sample holders, easy to maintain; Imported high-performance Peltier ensures fast and accurate amplification; Provide users with a relaxed PCR experimental experience.

Product Features

7" color LCD and touch screen, make the operation faster and more convenient

Embedded android system, the operation is more familiar and convenient. Remote control and remote diagnosis function

Experiment appointment and timed reminder function

Automatic TM calculation

Built-in program storage capacity: 2000

Support external USB flash drive, mouse, printer, etc

Equipped with USB2.0, RS232, RJ45 communication interfaces

Diverse sample holder options and strong versatility

Optional gold/silver-plated sample holders, for higher heat conduction efficiency and more efficient experiments

Handle-module design, replace sample holders easier and quicker. Convenient maintenance and low cost

Stepless adjustable heat lid design ensures full contact between the heat lid and various test tubes with appropriate pressure

Position the heat lid at any angle

Technical Parameter

Order number

960-T(GM-05)

Sample holder specifications

96*0.2mL(A);54*0.5mL(B);96*0.2mL+77*0.5mL(C);384well(D)

Sample holder replacement

Support

Temperature control method

Imported high-performance thermoelectric refrigeration

Temperature range

0-99.9℃

Maximum heating rate

≥5.0℃/s

Maximum cooling rate

≥5.0℃/s

Temperature accuracy

≤±0.1℃

Gradient temperature range

30-99℃

Gradient temperature width

1-30℃

Heat lid temperature

20-110℃

Temperature control mode

BlockTube

Power failure protection

support

Temperature increasing/decreasing

support

Time increasing/decreasing

support

Gradient

support

Program storage

2000 (USB driver expandable)

Nested loops

support

Communication interface

USB2.0, RS232, RJ45

Dimensions (L*W*H mm)

380*270*250

Net weight(kg)

8.1
