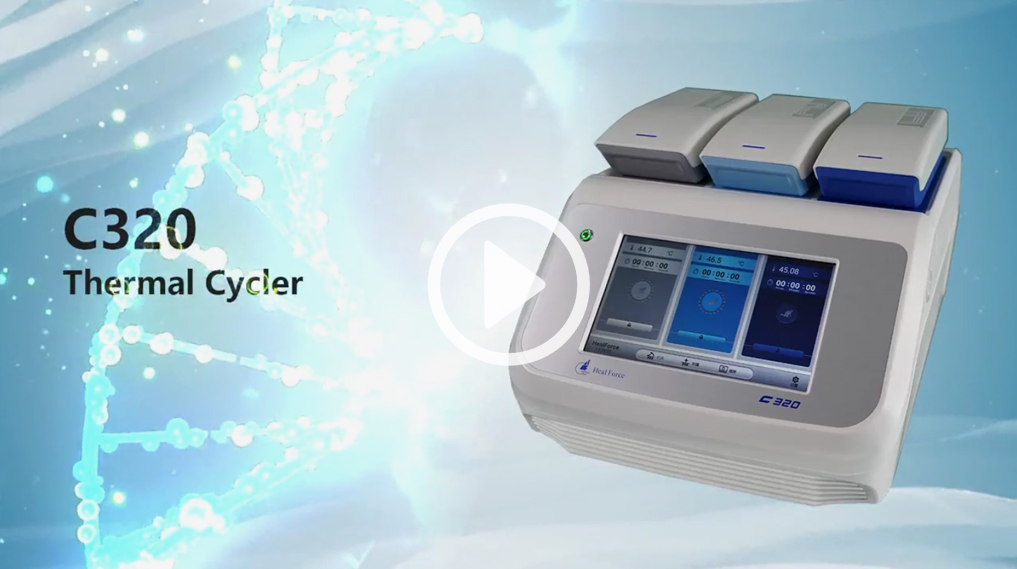

C320 Thermal Cycler

C320 is a new generation PCR instrument launched by Hangzhou Lattice. This PCR instrument is equipped with three modules that can independently execute corresponding temperature programs, allowing experiments that originally needed to be completed on three instruments to be completed on the same instrument, thereby saving you experimental costs and time.

On the basis of inheriting the excellent performance of the original brand PCR instrument, C320 adopts the Android system and has made significant optimizations in temperature control program settings, program file management, graphical interface, etc., bringing users a more comfortable operating experience.

0571-89905515

Message

Product Features

10.1" color TFT capacitive touch screen, beautiful interface and smooth operation

Advanced android system, strong software scalability

Direct-acting pull-type electromagnet control, open the lid with one click

Reserved mechanical lid opening function, open the heat lid safely in case of an accident

Run 3 PCR tests independently at the same time, avoid waiting for a long time

Set variable temperature rates for each section, to meet demanding experimental requirements

8G internal storage, equipped USB interface for storage extension and data import or export

Replace the sample holders easily and quickly without tools, convenient maintenance

Technical Parameter

Model	C320-A (Standard edition)	C320-B (Performance edition)
Sample holder replacement	support	support
Independent operation of sample holders	support	support
Electromagnetic control lock	support	support
Sample holder specifications	32 wells * 0.2ml * 3	32 wells * 0.2ml * 3
Screen	10.1" color touch screen	10.1" color touch screen
Maximum heating rate	≥6.0℃/s	≥8.0℃/s
Maximum cooling rate	≥5.0℃/s	≥5.0℃/s
Average heating rate	≥3.0℃/s (55℃-95℃)	≥5.0℃/s (55℃-95℃)
Average cooling rate	≥2.0℃/s (95℃-55℃)	≥3.0℃/s (95℃-55℃)
Temperature uniformity	±0.15℃ (95℃ constant for 10s)	±0.15℃ (95℃ constant for 10s)
Temperature accuracy	±0.1℃	±0.1℃
Temperature increasing/decreasing	0.1~10.0℃	0.1~10.0℃
Time increasing/decreasing	support	support
Single module gradient function	no	support
Power failure protection	support	support
Storage capacity	8G (USB expandable)	8G (USB expandable)
Maximum number of cycles	999	999
Communication interface	USB 2.0;LAN	USB 2.0;LAN
Operating system	Android	Android
Dimension (L * W * H mm)	502 * 394 * 293	502 * 394 * 293
Net weight(kg)	16	18
