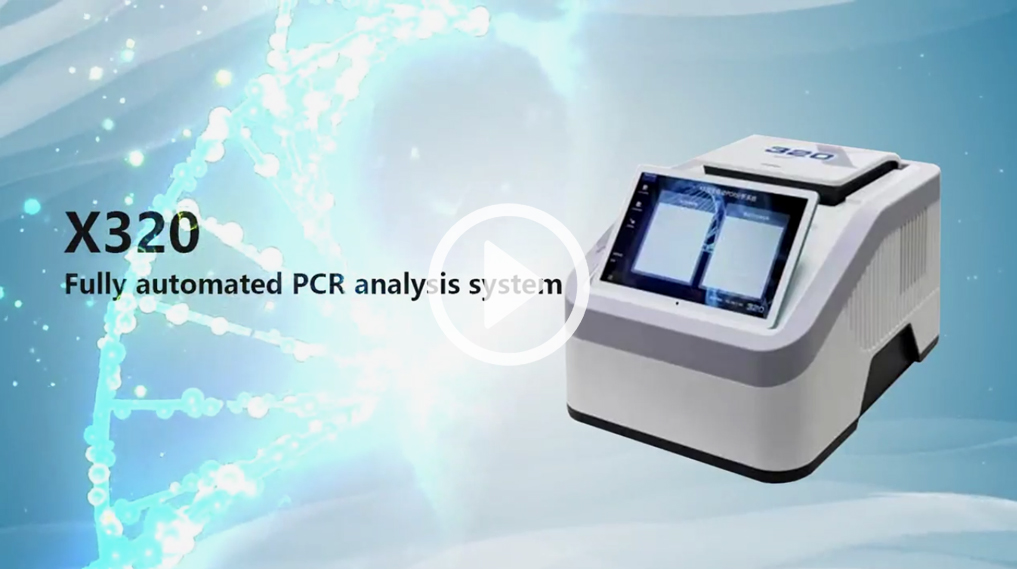

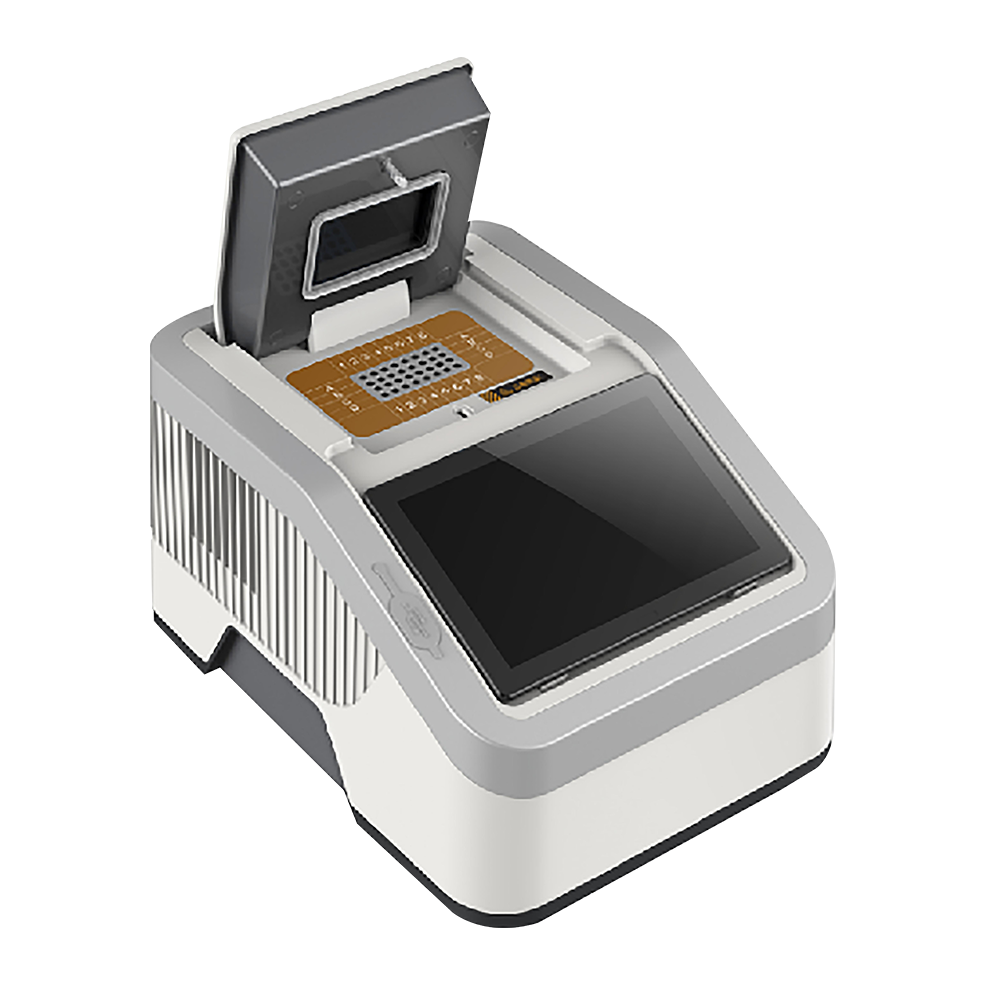

X320 Fully Automated PCR Analysis System

The X320 fully automatic PCR analysis system is a specialized instrument for real-time fluorescence PCR detection. It integrates PCR amplification, fluorescence detection, and data analysis. It can monitor the growth process of fluorescence in each test tube in real time while PCR amplification is in progress. After amplification, the software automatically processes experimental data, performs quantitative/qualitative or melting curve analysis on the sample, displays and prints experimental results such as the initial concentration of the sample.

0571-89905515

Message

Product Features

Tablet operation allows real-time viewing of experimental progress and results in the distance

Equipped with A8 processor, the machine runs more smoothly and the experience is better

Ultra-high brightness monochrome LED light source, high-sensitivity cold light source CCD

Intuitive and clear operation interface, Chinese and English languages available

Multiple analysis modes

Real-time parameter setting when program is running

Convenient connection with PC via WIFI or LAN

Support outdoor work when connected with mobile power

Technical Parameter

Model	X320
Fluorescence acquisition channels	2
Sample holder specifications	32 wells* 0.2ml
Fluorescence acquisition method	32-well synchronous acquisition
Light source	Super bright single color LED light source
Fluorescence detector	High-resolution deep thermo-electric cooling scientific-grade CCD
Detection dynamic range	10º-10¹º
Reaction volume	10ul-100ul
Fluorescence excitation wavelength	Channel 1:470 Channel 2:525
Fluorescence detection wavelength	Channel 1:520 Channel 2:570
Temperature control range	0℃~100℃
Maximum heating rate	≥5℃/s
Maximum cooling rate	≥5℃/s
Average heating rate	≥ 3℃/s (55℃-95℃)
Average cooling rate	≥ 2℃/s (95℃-55℃)
Temperature uniformity	±0.15 ℃ ( 95℃ constant for 10s )
Temperature accuracy	±0.1℃
Heat lid temperature range	Room temperature ~ 110℃
Temperature increasing/decreasing	0.1~10.0℃
Time increasing/decreasing	support
Temperature rate adjustable range	0.1~5℃/s
Power failure protection	support
Nested loops	support
Experimental data recovery	support
Modify parameters during operation	support
Analysis mode	Relative quantification, absolute quantification, endpoint quantification, melting curve analysis, gene scanning analysis, allele analysis, etc
