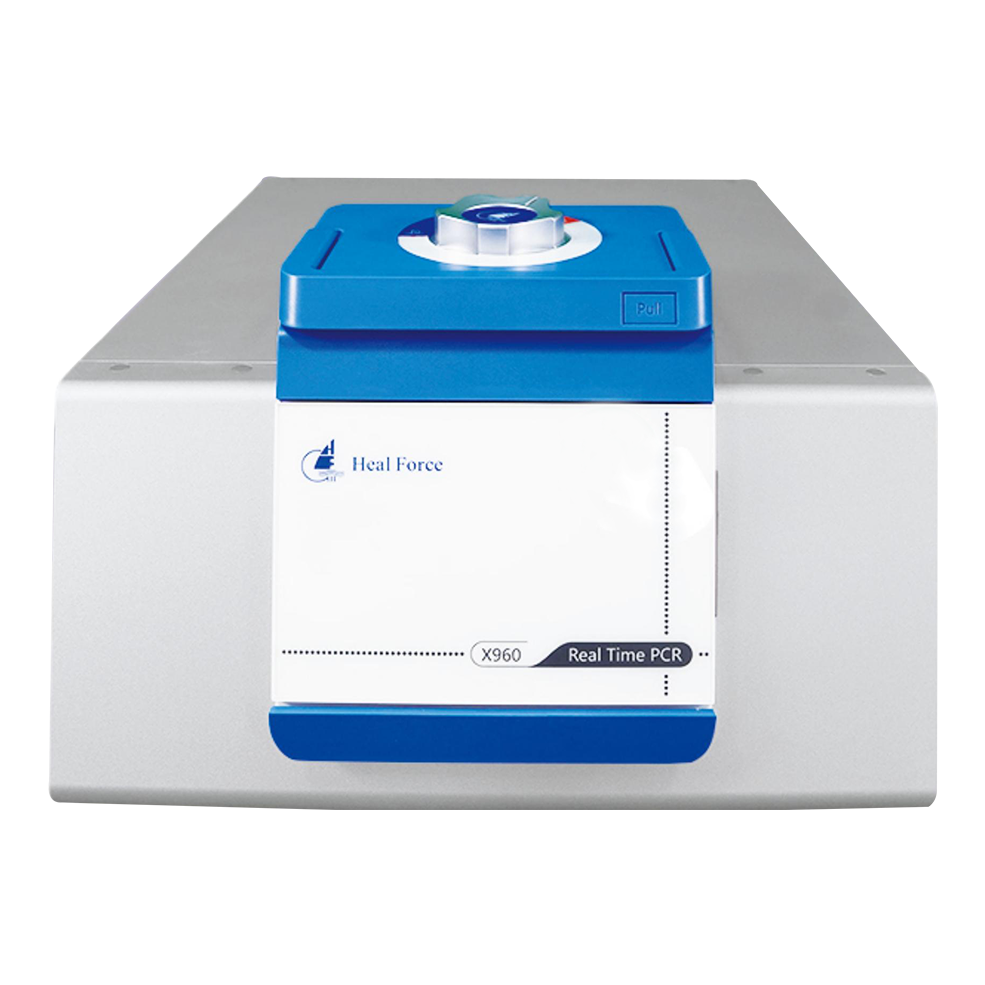

X960 Real-Time PCR Detection System

The X960 full-automatic medical PCR analysis system is an integrated platform for specific target gene detection and quantitative analysis. It combines the PCR thermal cycle instrument, fluorescence detection and various application analysis software, and dynamically observes the amplification products in each sample in each cycle of PCR in real time. It can quickly obtain the analysis results without gel electrophoresis analysis, purification of PCR products, and any other experimental operation.

0571-89905515

Message

Product Features

Integral die-sinking design, aluminum alloy material

Ordinary heat lid: 3D design, uniform pressure, great sealing and insulation effect

Sliding track design of heat lid, easy to place and take samples

Equipped with gold-plated module, better heat conduction efficiency

Based on Linux operating system, equipped with A8 processor

LED light source, deep cooling and high-resolution CCD camera

Independently developed analysis software

Intuitive and clear operation interface, switch language versions conveniently and quickly

With gradient, Touch down, longPCR and other advanced programming functions. WIFI or LAN connection with PC end

Multiple PCR machines’ control on one PC

Customized channels for different customer requirements

Technical Parameter

Model	X960
Order number	X960(A)	X960(B)
Fluorescence acquisition channels	2	4+1, 4 standard channels, 1 reserved for customization
Temperature control method	Imported high-performance thermoelectric refrigeration	Imported high-performance thermoelectric refrigeration
Sample holder specifications	96 wells *0.2ml	96 wells *0.2ml
Fluorescence acquisition method	96-well synchronous acquisition	96-well synchronous acquisition
Light source	Ultra-high brightness monochromatic LED light source	Ultra-high brightness monochromatic LED light source
Fluorescence detector	High-resolution deep thermo-electric cooling scientific-grade CCD	High-resolution deep thermo-electric cooling scientific-grade CCD
Fluorescence excitation wavelength	Channel 1:470 Channel 2:525	Channel 1:470 Channel 2:525 Channel 3:585 Channel 4:625 Channel 5: Customization
Fluorescence detection wavelength	Channel 1:520 Channel 2:570	Channel 1:520 Channel 2:570 Channel 3:620 Channel 4: 675 Channel 5: Customization
Heat lid mode	Sliding track heat lid	Sliding track heat lid
Temperature increasing/decreasing	0.1~10.0℃	0.1~10.0℃
Time increasing/decreasing	support	support
Gradient function	support	support
Power failure protection	support	support
Temperature control mode	Block、Tube	Block、Tube
Maximum number of cycles	999	999
Nested loops	support	support
Communication interface	WIFI;LAN	WIFI;LAN
Processor	A8 processor	A8 processor
Operating system	Linux	Linux
PC operating system	Windows XP and above	Windows XP and above
Experimental data recovery	support	support
Modify parameters during operation	support	support
Analysis mode	Relative quantification, absolute quantification, endpoint quantification, melting curve analysis, gene scanning analysis, allele analysis, etc
